Hdmi extender 4K cascade connection 120M

(24 reviews) In Stock

₵1,980.00 ₵1,900.80 4% OFF

Product Highlights

Chained \\\"Cascade\\\" Setup: Each receiver unit features both an RJ45 Input and an RJ45 Output, allowing you to link up to 12 receivers in a single row.

Ultra-HD 4K Resolution: Supports 4K at 30Hz, ensuring that high-resolution content remains sharp even after passing through multiple \\\"links\\\" in the chain.

120-Meter Segment Range: Provides a massive distance of up to 120 meters between the transmitter and the first receiver, with roughly 100 meters supported between each subsequent receiver.

Integrated IR Pass-back: Allows you to control your source device (like a decoder) from any TV in the chain using the original remote control.

Lossless Digital Signal: Uses advanced processing to ensure that video and audio remain synchronized with zero signal degradation across the cascade.

Plug-and-Play Architecture: No IP configuration or software is needed; the \\\"handshake\\\" between the units happens automatically as soon as the Cat6 cables are connected.

Why Shop With Us

Fast Delivery

Delivery within 24-48 hours in Accra, 2-5 days nationwide

Secure Payment

100% secure payment options with SSL encryption

Easy Returns

7-day return policy for damaged or wrong items

24/7 Support

Dedicated customer support available anytime

Product Specifications

Type:Hdmi Extender

Compatibility:Universal

The 4K 60M HDMI Extender (Cascade Connection) is a versatile networking tool designed for multi-screen environments. While a standard extender only sends a signal from point A to point B, a Cascade model allows you to \\\"chain\\\" multiple receivers together.\
\
This means you can pull one cable from the transmitter to the first TV, then pull another cable from that first TV to a second TV, and so on, creating a long string of displays without needing a separate HDMI splitter at the source.

Technical Specifications

Model Type: 4K 120M Cascade Edition (Multi-Receiver Support). .
Max Resolution: 3840 x 2160 @ 30Hz (Backward compatible with 1080p/720p). .
Cascading Capacity: Recommended maximum of 8 to 12 receivers in one chain. .

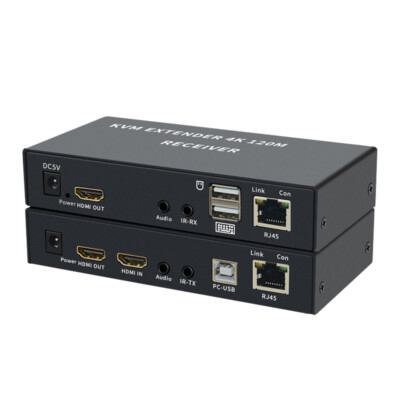

Interface Ports: HDMI In/Out, RJ45 In, and RJ45 Out (on Receiver units). .
Audio Standards: DTS-HD, Dolby-TrueHD, LPCM 7.1, DTS, and Dolby-AC3. .
Maximum Bandwidth: 340MHz at a 10.2Gbps total baud rate. .
HDMI Compliance: HDMI 1.4b and HDCP 1.4 compliant. .
Power Requirements: DC 5V / 1A or 2A (Each unit in the chain requires its own power). .
Cabling Standard: Pure Copper Cat6/6A/7 (T568B termination). .
Operational Temperature: -15°C to +55°C (Industrial heat-sync design).
