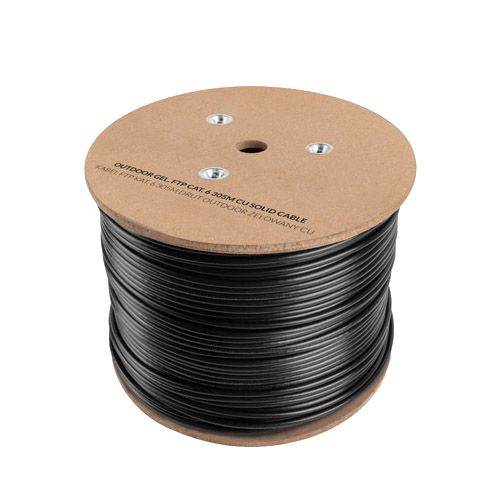

TELDOR CAT6 23AWG 305M - FULL COPPER (TELDOR)

(24 reviews) In Stock

₵4,200.00 ₵3,499.86 16% OFF

Product Highlights

100% Solid Bare Copper: Provides superior conductivity and prevents brittleness associated with CCA cables. High Performance: Optimized for Gigabit Ethernet (1000Base-T) and digital video/voice signals. PoE Optimized: Safe and efficient for PoE, PoE+, and 4PPoE (IEEE 802.3bt) due to low heat generation. Reduced Crosstalk: Features a central star-shaped filler (spline) to maintain pair separation and minimize noise. Sequential Marking: Meters are clearly printed on the jacket (001M-305M) for precise inventory management. Professional Durability: High-grade jacket material suitable for fixed installations in ducts or wall cavities. Tangle-Free Dispensing: Supplied in a reinforced \\\"Reel-in-Box\\\" for smooth, kink-free pulling during installation.

Why Shop With Us

Fast Delivery

Delivery within 24-48 hours in Accra, 2-5 days nationwide

Secure Payment

100% secure payment options with SSL encryption

Easy Returns

7-day return policy for damaged or wrong items

24/7 Support

Dedicated customer support available anytime

Product Specifications

Type:Outdoor Cables

Length:305

Category:Cat6

The TELDOR Cat6 23AWG 305M Full Copper is a high-tier networking cable designed for mission-critical infrastructure where signal integrity and power delivery are paramount. Manufactured by Teldor, a brand known for industrial-grade cabling, this cable uses 100% Solid Bare Copper conductors. Unlike cheaper CCA (Copper Clad Aluminum) alternatives, full copper provides significantly lower resistance, making it the only safe choice for high-wattage Power over Ethernet (PoE) applications like advanced PTZ security cameras and VoIP systems.

The 23AWG (American Wire Gauge) thickness is slightly heavier than standard 24AWG cables,

Technical Specifications

* Category 6 (Cat6) Performance: High-bandwidth networking cable designed to support high-speed Gigabit Ethernet and 10GBASE-T applications (over shorter distances) with superior signal reliability.

* 100% Annealed Bare Copper: Constructed with high-purity, softened solid copper conductors for maximum conductivity, easier termination, and superior support for Power over Ethernet (PoE/PoE+/PoE++).

* U/UTP Construction: Features an Unshielded Twisted Pair design that offers maximum flexibility and a smaller cable diameter, making it ideal for high-density routing in office conduits and patch panels.

* Conductor Gauge: Utilizes a heavy-duty 23 AWG solid wire, the industry benchmark for high-performance Cat6 cabling to ensure minimal signal attenuation over the full 100-meter channel.

* 250 MHz Bandwidth: Rigorously tested up to 250 MHz—with the capability to reach 400 MHz in optimized environments—providing ample overhead for high-traffic data and video streaming.

* Internal Plastic Cross-Separator: Incorporates a central spline to keep the four twisted pairs physically isolated, which significantly reduces Near-End Crosstalk (NEXT) and maintains structural integrity.

* Advanced Jacket Material: Available in FR-PVC or LSZH (Low Smoke Zero Halogen) to meet strict building fire codes by reducing toxic emissions and smoke during a fire.

* Low DC Resistance: Engineered with a low resistance of ≤ 72 Ω/km, which minimizes heat generation during PoE power delivery and ensures efficient data transmission.

* Operating Temperature: Rated for stable performance in environments ranging from -20°C up to +75°C, ensuring reliability in both chilled server rooms and warm ceiling voids.

* Tensile Strength: Features a maximum tensile load of 120 N, allowing for professional pulls through long conduit runs without stretching or damaging the internal copper cores.

* Global Compliance: Fully certified to ANSI/TIA-568.2-D, ISO/IEC 11801, and RoHS 3 standards, guaranteeing inter-operability with all standard networking hardware.

* Bulk 305-Meter Payout: Supplied in a standard 1000-foot (305 m) length, perfect for systematic floor wiring and efficient inventory management.
