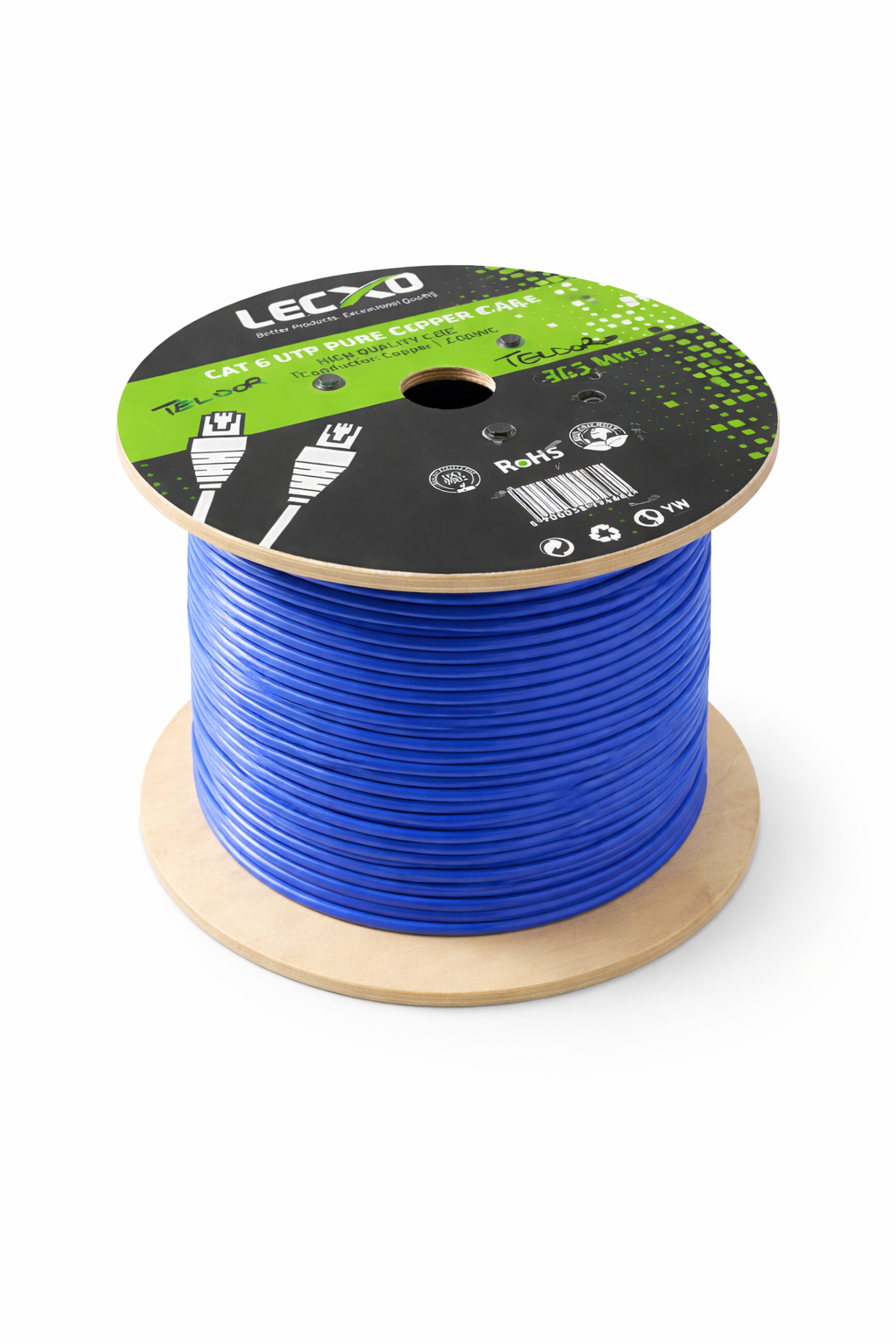

LEXCO CAT6E UTP OUTDOOR 305M

(24 reviews) In Stock

₵2,180.00

Product Highlights

Product Type: Cat6e UTP (Unshielded Twisted Pair) Outdoor Bulk Cable.

Conductor Gauge: 23 AWG Solid Bare Copper (4 pairs).

Transmission Frequency: Rated for 550MHz to 600MHz (exceeding the standard 250MHz Cat6 spec).

Length: 305 Meters (1000 Feet) per roll/box.

Jacket Material: Dual-layer or Single UV-Resistant PE (Black); inner jacket often made of PVC.

Insulation Material: HDPE (High-Density Polyethylene) for superior wire protection.

Data Rate Support: 1000Base-T (Gigabit) and 10Gbase-T (10-Gigabit) up to 37–55 meters.

Standard Compliance: Meets or exceeds ANSI/TIA-568-C.2 and ISO/IEC 11801 standards.

Pulling Tension: High-tensile strength, typically rated up to 110N (11.5 kg).

Flame Rating: Often rated CM/CMX for outdoor use; note that PE jackets are highly flammable and should be transitioned to indoor-rated cable (LSZH/PVC) once inside a building.

Why Shop With Us

Fast Delivery

Delivery within 24-48 hours in Accra, 2-5 days nationwide

Secure Payment

100% secure payment options with SSL encryption

Easy Returns

7-day return policy for damaged or wrong items

24/7 Support

Dedicated customer support available anytime

Product Specifications

Type:Indoor Cables

Length:305

Category:Cat7

The Lexco Cat6e UTP Outdoor 305M is a high-performance network cable specifically engineered for external data transmission and harsh environmental conditions. The \"Cat6e\" designation indicates an enhanced Category 6 specification, typically supporting higher frequencies (up to 550MHz-600MHz) compared to standard Cat6 (250MHz), ensuring more headroom for Gigabit and 10-Gigabit applications over shorter distances. Packaged in a standard 305-meter (1000ft) easy-pull box, this cable features a dual-jacket or heavy-duty PE (Polyethylene) construction designed to resist UV radiation, moisture, and extreme temperature fluctuations, making it the ideal choice for outdoor CCTV installations, building-to-building links, and aerial networking.

Technical Specifications

Enhanced Performance (Cat6e): Engineered to exceed standard Category 6 requirements, providing improved signal-to-noise ratios and higher bandwidth capacity for demanding data environments.

Weatherproof Outer Jacket: Encased in a rugged, UV-stabilized PE (Polyethylene) or LLDPE jacket that prevents cracking and degradation when exposed to direct sunlight and rain.

Unshielded Twisted Pair (UTP): Features a classic 4-pair unshielded design that is flexible and easy to terminate, suitable for areas without high electromagnetic interference (EMI).

Solid Bare Copper Conductors: Uses 23 AWG solid bare copper (rather than CCA) to ensure maximum conductivity, lower resistance, and full support for Power over Ethernet (PoE/PoE+).

Internal Cross Divider: Includes a central plastic spline (separator) that keeps the four pairs isolated, significantly reducing \"near-end crosstalk\" (NEXT) for cleaner data transmission.

Direct Burial Capability: Many versions of the Lexco outdoor series are rated for direct burial, allowing the cable to be laid underground without the need for additional conduit.

High-Speed Data Support: Optimized for 10/100/1000 Mbps (Gigabit) Ethernet and capable of supporting 10G speeds at reduced distances.

Sequential Meter Marking: The cable jacket is printed with length markers every meter, allowing for precise measurement and reducing wastage during custom installations.

Industrial Temperature Tolerance: Designed to remain functional in extreme climates, typically rated for operation from -40°C to +75°C.

PoE & VoIP Ready: Ideal for powering outdoor Access Points (APs) and IP security cameras directly through the data cable.
