4 Port SDI Splitter

(24 reviews) In Stock

₵890.00

Product Highlights

Precision Quad Mirroring: Distributes one SDI source to four identical SDI displays or recording devices without any loss of signal quality. Professional Re-clocking Technology: Features internal re-clocking that regenerates the digital signal, allowing for multiple units to be cascaded without accumulating jitter. Extended Cable Reach: Includes built-in cable equalization that compensates for signal loss, supporting long-distance transmission over high-quality coaxial cables. Auto-Format Detection: Automatically recognizes the input signal type (SD-SDI, HD-SDI, or 3G-SDI) and adjusts the output accordingly for seamless operation. Broadcast-Grade Durability: Housed in a rugged, industrial metal enclosure that provides superior shielding against electromagnetic interference (EMI). Multi-Standard Support: Fully compatible with a wide range of SMPTE standards, making it versatile for both legacy and modern digital video workflows. Locking Power Connector: Often features a threaded or secure DC power input to prevent accidental power disconnection during live broadcasts. Synchronized Data Streams: Supports the transmission of embedded audio and ancillary data alongside the video signal across all four ports. Zero Latency Distribution: Provides real-time signal splitting, which is essential for live television production and surgical imaging where delays are unacceptable. Discrete Professional Design: Compact and mountable form factor, ideal for integration into DIT carts, server racks, or mobile broadcast vans.

Why Shop With Us

Fast Delivery

Delivery within 24-48 hours in Accra, 2-5 days nationwide

Secure Payment

100% secure payment options with SSL encryption

Easy Returns

7-day return policy for damaged or wrong items

24/7 Support

Dedicated customer support available anytime

Product Specifications

{\"Type\":\"Adapters\",\"Compatibility\":\"Universal\"}

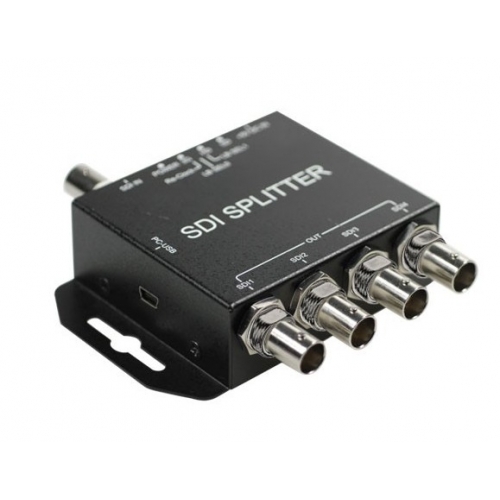

The 4 Port SDI Splitter is a high-performance broadcast-grade distributor designed to take a single Serial Digital Interface (SDI) input and replicate it across four SDI outputs simultaneously. Unlike consumer-grade HDMI splitters, this device is engineered for professional video production, broadcasting, and surveillance environments where signal reliability and long-distance transmission are critical. It features advanced cable equalization and signal re-clocking technology, which restores the digital signal to its original integrity before distribution. Housed in a heavy-duty metal chassis, this splitter is built to withstand the rigors of live production environments, ensuring that high-definition video remains perfectly synchronized and artifact-free across all four professional monitors or recording decks.

Technical Specifications

Input Configuration:Features 1 x BNC (75 Ω) female input port for professional coaxial connection. Output Configuration: Equipped with 4 x BNC (75 Ω) female output ports for simultaneous distribution. Supported Video Standards: Compatible with SD-SDI (270Mbps), HD-SDI (1.485Gbps), and 3G-SDI (2.97Gbps) signals. Resolution Performance: Supports resolutions up to 1080p @ 60Hz, including 1080i and 720p broadcast formats. Standard Compliance: Fully adheres to SMPTE 259M, SMPTE 292M, SMPTE 344M, and SMPTE 424M protocols. Cable Equalization (Belden 1694A): Supports distances up to 400m for SD, 200m for HD, and 100m for 3G signals. Color Space Support: Handles professional color depths including RGB and YCbCr 4:2:2 / 4:4:4 for high-end color grading. Power Specification: Operates on DC 5V - 12V (typically via an included 5V/1A or 2A power adapter). Signal Voltage: Operates with an SDI output amplitude of 800mVp-p +/- 10% for industry-standard compatibility. Operating Temperature: Engineered for extreme professional environments with a range of -10°C to +55°C.
