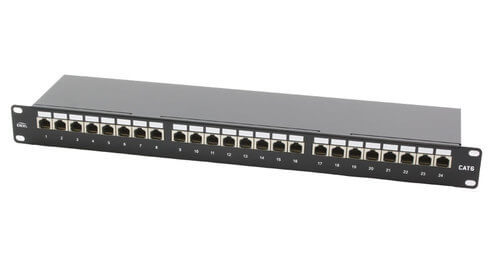

D-link Unshielded 24 port full loaded patch panel

(24 reviews) In Stock

₵670.00

Product Highlights

Pre-loaded with 24 high-quality Cat6 UTP keystone jacks to reduce installation time. Cat6 compliant for data transfer speeds up to 1000 Mbps. Standard 19-inch width with a 1U vertical rack footprint. Integrated jack shutters to protect unused ports from dust and debris. Detachable rear support bar and cable ties included for strain relief. Front panel ID strips and numbering for organized labeling and troubleshooting. Color-coded IDC blocks supporting T568A and T568B wiring schemes. SPCC cold-rolled steel chassis with a durable black powder-coated finish. IDC terminals compatible with both 110 and Krone punch-down tools. 50 micro-inch gold-plated contacts rated for 750 insertion cycles.

Why Shop With Us

Fast Delivery

Delivery within 24-48 hours in Accra, 2-5 days nationwide

Secure Payment

100% secure payment options with SSL encryption

Easy Returns

7-day return policy for damaged or wrong items

24/7 Support

Dedicated customer support available anytime

Product Specifications

Type:Patch Panels

Compatibility:Universal

The D Link Unshielded 24 Port Fully Loaded Patch Panel NPP C61BLK241 is a high density rack mountable unit designed for centralized network cable management As a fully loaded panel it comes pre installed with 24 Cat6 RJ45 jacks eliminating the need to purchase separate keystone modules This 1U panel is engineered for Gigabit Ethernet applications providing a clean and organized termination point for horizontal cabling in server racks or network closets The unshielded UTP design is ideal for standard office and residential environments where electromagnetic interference is not a primary concern

Technical Specifications

Model Number NPP-C61BLK241. Cat6 and Class E unshielded twisted pair (UTP) rating. 24 Ports arranged in a single row configuration. 1U physical height measuring 1.75 inches or 44.45 mm. 1.5mm SPCC Steel panel with UL 94V-0 high-impact plastic jacks. Phosphor Bronze contacts with 50 micro-inch gold plating over nickel. IDC termination supporting 22 AWG to 26 AWG solid or stranded copper wire. Meets ANSI/TIA/EIA 568B.2-1 and ISO/IEC 11801 transmission standards. 30N maximum insertion force and 7.7 kg retention strength. Operating temperature range of -10°C to +60°C.
